USB Dual-Band Quick Card Registration Reader – AR-725-R

FEATURES

◎USB Plug&Play free of driver installation
◎Suitable for 701Client quick card registration procedure(Support 701ClientSQL version 2019 May and after)
◎Support WIN XP, WIN 7 , WIN10

Overview
Spesifikasi
Download

Overview

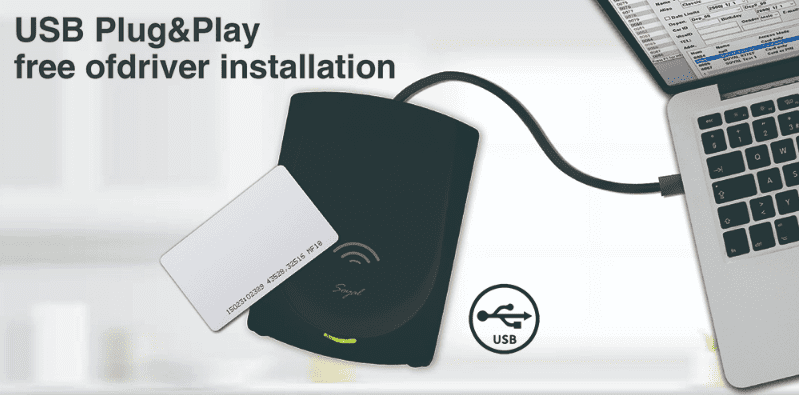

USB Plug&Play Free of Driver Installation - Soyal Dual Band Registration Reader - AR-725-R

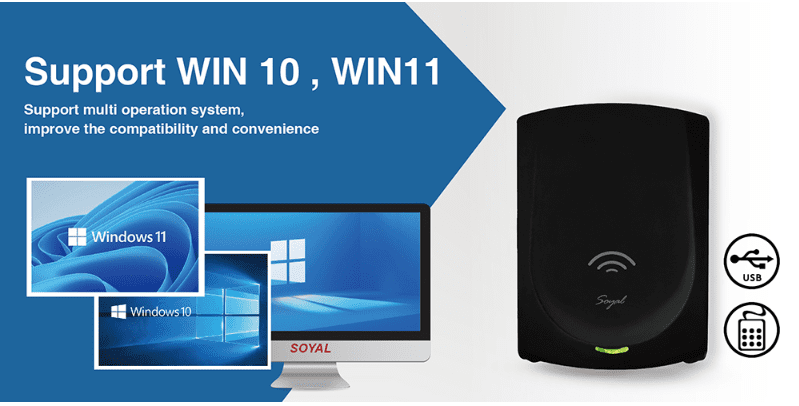

Support Win 10 - Win11 - Soyal Dual Band Registration Reader - AR-725-R

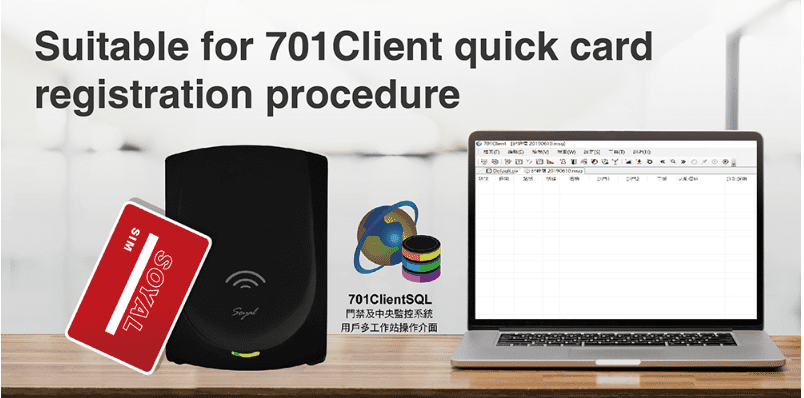

Suitable for 701 Client Quick Card Registration procedure - Soyal Dual Band Registration Reader - AR-725-R

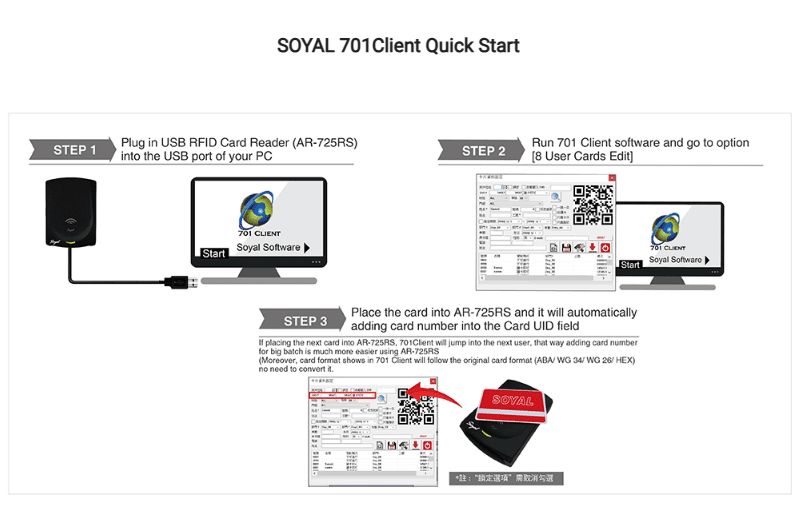

Soyal 701Client Quict Start - Soyal Dual Band Registration Reader - AR-725-R

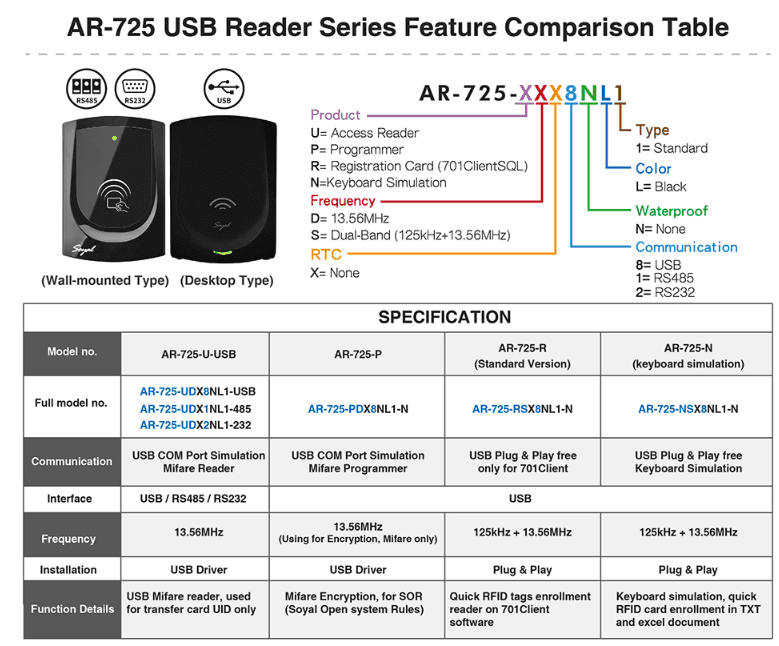

AR-725 USB Reader Series Feature Comparison Table - Soyal Dual Band Registration Reader - AR-725-R
  • USB-HID Plug&Play free of driver installation
  • Suitable for 701Client quick card registration procedure(Support 701ClientSQL version 2019 May and after)
  • Support  WIN 10 , WIN11

Specification

AR-725-R Specification
FrequencyDual Band (125kHz + 13.56MHz)
Supported TagsEM Tag,MIFARE / DESFire Tag
RFID Reading Range1-3 cm
CommunicationUSB Plug & Play free
only for 701Client
InterfaceUSB
Read / WriteRead Only
Indicator1 Bi-color LED/ 1 Buzzer
Power VoltagePower supplied via USB 5VDC
Power Consumption<0.5W
InterfacePlug & Play
Function DetailsQuick RFID tags enrollment reader on 701Client software
Housing MaterialABS (Fire-proof level: 94V0)
ColorBlack
Weight (g)approx. 90
Dimension (mm)110(H)x79(W)x26(D)
Operating Temperature-20℃ ~ +70℃
*MIFARE and MIFARE Classic, MIFARE DESFire, MIFARE Plus, MIFARE Ultralight are registered trademarks of NXP B.V.

Download

Brosur Soyal AR-725-R

Klik disini untuk mendownload File
