Authorized Distributor Soyal Access Control Indonesia
Soyal Vandal-Proof Access Reader (Wiegand) – AR-321-K
FEATURES

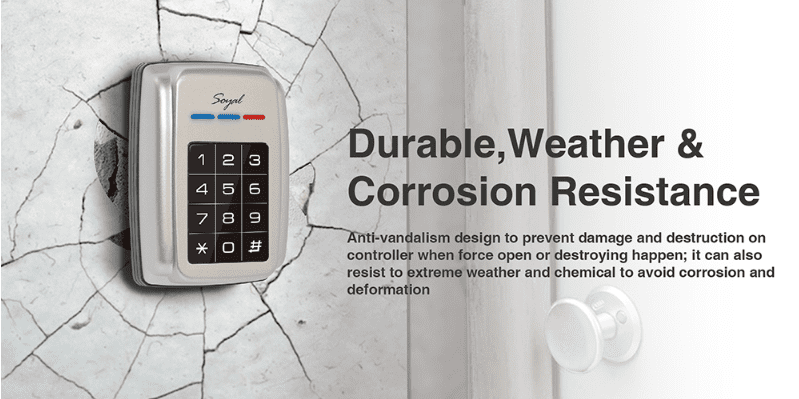

◎Durable, Weather & Corrosion Resistance
◎3 Sets of LED
◎Glow in Dark

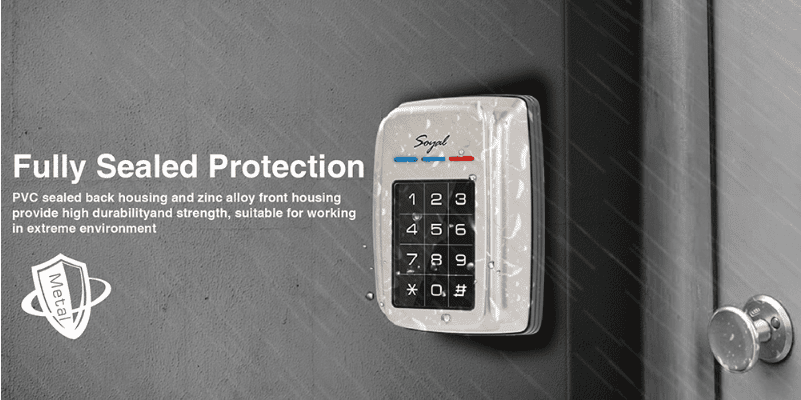

◎Fully Sealed Protection
Overview
- Flexible to integrate with SOYAL or other access control system
- Interface of the Proximity Reader have WG and ABA-II etc., depending on the controller to make adjustments. And can optional the RS-232 or the RS-485
- 3 bi-color LED and 1 beeper for identification
- Built-in Watchdog to prevent system from hanging
Specification
| Frequency / UID Bits / RF Reading Range | ||
|---|---|---|
| B (125Khz) | D (13.56Mhz) | |
| Frequency | ISO18000-2: EM4001 | ISO 14443 /ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) |
| and EM4095 compatible | ||
| UID Bits | 24~32 (Adjustable) | |
| RF Reading Range | 3-7cm | 1-3 cm |
| *Reading range will be shorter in metal surface installation. The solution is to add 2CM distance or layer between the wall and the controller. | *Reading range will be shorter in metal surface installation. The solution is to add 2CM distance or layer between the wall and the controller. | |
| *MIFARE and MIFARE Classic, MIFARE DESFire, MIFARE Plus, MIFARE Ultralight are registered trademarks of NXP B.V. | ||
| RFID Crypto / Communication interface | ||
| B (125Khz) | D (13.56Mhz) | |
| RFID Crypto | — | CC Certification: |
| 3DES Crypto comply with EAL4+ | ||
| Host | RS-485 (9600 bps) | RS-485 (9600 bps) |
| SSC (Soyal Security Communication) | ||
| Serial | UART PORT (Only Output) | |
| Wiegand Input | Wiegand 24~34 | |
| Wiegand Output | No | |
| *SSC (SOYAL SECURITY COMMUNICATION) To enchance security of communication | ||
| DI/DO (Doors Control:1.5) | ||
| Main Controller | Wiegand Output Port | |
| DI | Egress X1 | Share with Main Controller |
| Door Status X1 | ||
| Door Lock Output | Door Lock Relay X1 | Share with Main Controller |
| Alarm Output | Open Collector X1 ( Share with Lift Control ) | |
| Wiegand Port | — | Wiegand Data 0 Intput X1 |
| Wiegand Data 1 Intput X1 | ||
| Red LED Output X1 | ||
| Green LED Output X1 | ||
| Beeper Output X1 | ||
| Open Collect Output | Arming Output X1 | |
| Security Trigger Signal X1 | ||
| Duress Output X1 | ||
| Tamper | Limit switch (1 Form C/ 1000mA / 30VDC) | |
| User Capacity / Floors Number / Event Log | ||
| User Capacity / Floors Number | 3,000 Users / 32 Floors | |
| Event Log | 1500 | |
| Hardware specifications | ||
| Power Voltage | 12-24VDC | |
| Power Consumption | <3W | |
| Indicator | LED | 3 Bi-Color LED (Blue/Red) |
| Buzzer | 1 | |
| TAMPER | Limit switch (1 Form C/ 1000mA / 30VDC) | |
| Housing Material | Zinc Alloy (Fire-proof level: 94V0) | |
| Color | Chrome | |
| Keypad | Illuminated Touch-Panel / * Invisible Keypad Function | |
| Dimension (mm) | 114(H)X78(W)X33(D) | |
| Net Weight(g) | approx. 290 | |
| Ingress Protection | IP56 | |
| Environment | Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ to +75℃ | |
| Operating Humidity | 0%~90% (non-condensing) | |
| Storage Humidity | 0%~95% (non-condensing) | |
| Net Weight(g) | PC | approx. 140 |
| Zinc Alloy | approx. 245 | |
| Ingress Protection | IP65 | |
| Environment | Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ to +75℃ | |
| Operating Humidity | 0%~90% (non-condensing) | |
| Storage Humidity | 0%~95% (non-condensing) | |
Download
Brosur Soyal AR-321-H
